40A/30A high switching capability 5-prong universal standard relay, SPDT (Single Pole Double Throw) Pin Specifications: 30-VDC, 85-Ground, 86-Trigger, 87-Output N/O, 87a-Output N/C Nominal Coil Voltage: 12vdc; Must Operate Voltage: 6~8vdc; Must Release Voltage: 0.6~3.6vdc; Maximum Applied Voltage: 15.6vdc; Coil Power: 1.8w; Coil Resistance: 80Ω Used on: All automotive and devices equipped with a 12-volt power source, car sound systems, security systems, LED lights, headlights, and various other applications Nominal Coil Voltage: 12 V DC
Coil Power: 1.8 W
Coil Resistance: 80 Ω
Must Operate Voltage: 6~8 V DC
Must Release Voltage: 0.6~3.6 V DC
Maximum Applied Voltage: 15.6 V DC
Contact Ratings: NO 40A 14V DC
Contact Resistance: 100mMAX (at6VDC 1A)
Max Switching Current: 40A
Max Switching Power: 560 W
Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)
Life Expectancy Machanical: 10,000,000 Operations
Temperature Range: -30 ~ +80 degrees Celsius
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g
Hunidity: 40% ~ 85%
Insulation Resistance: 100mΩ Min at500VDC
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contactw and coil: 750AC (for one minute/sec)
Operate Tice: 7ms
Release Tice: 5ms

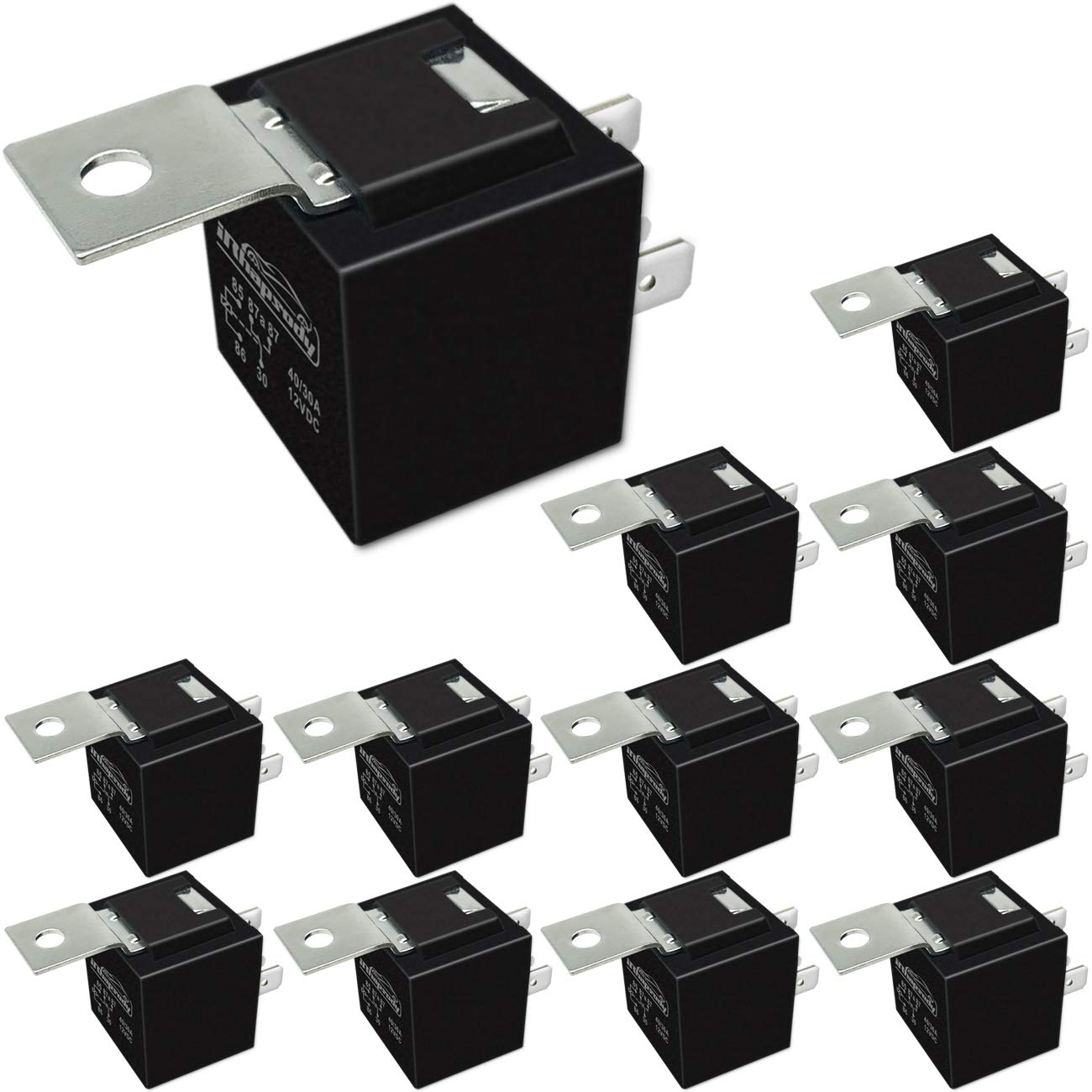

Package Content: 12 * 5-pin relays
